Stack overflow over the air — Realtek RTW drivers

The bug

rtw_get_wps_attr_content() copies a WPS attribute's data into the caller's buffer using the attribute's own data_len field (attacker-controlled, up to 0xFFFF) with no destination-size check. On the Wi-Fi scan path, the destination is u8 sr = 0 — one byte on the stack.

/* rtw_ieee80211.c */
memcpy(buf_content, attr_ptr + 4, attr_len - 4);   // no bound on destination

/* ioctl_cfg80211.c — scan path */
u8 sr = 0;                                          // 1 byte on the stack
rtw_get_wps_attr_content(wpsie, wpsielen,
    WPS_ATTR_SELECTED_REGISTRAR, &sr, NULL);         // copies data_len bytes into &sr

A crafted beacon with a Selected Registrar attribute claiming data_len=200 overflows the stack during a normal Wi-Fi scan, with no user interaction beyond having Wi-Fi enabled.

Affected drivers

The vulnerable function is Realtek vendor code shared across the entire RTW driver family:

Driver	Location	Status
rtl8723bs	`drivers/staging/rtl8723bs` (in-tree)	Patch posted
rtl8812au	aircrack-ng/rtl8812au (out-of-tree)	Vulnerable
rtl8188eus	aircrack-ng/rtl8188eus (out-of-tree)	Vulnerable
rtl8723du	lwfinger/rtl8723du (out-of-tree)	Vulnerable

Affected forks and packages

aircrack-ng/rtl8812au (~3.9k stars) — packaged by Kali Linux as realtek-rtl88xxau-dkms
aircrack-ng/rtl8188eus (~1.1k stars)
morrownr/8812au-20210820
lwfinger/rtl8188eus
lwfinger/rtl8723du
cilynx/rtl88x2bu — likely affected, same vendor code family
Ubuntu 24.04 LTS — rtl8812au-dkms in universe
Arch AUR — rtl8812au-dkms-git

Proof

Emulation (mwemu)

The overflow was originally found and verified with mwemu + kohunt, which loads the real compiled .ko and drives rtw_get_wps_attr_content with a crafted WPS IE against a 1-byte ledger-tracked destination. This was used to verify all in-tree kernel drivers without needing physical hardware for each chipset.

Hardware (rtl8812au)

Hardware verification was performed on an RTL8812AU USB adapter using the aircrack-ng out-of-tree driver, Debian 12 bookworm, kernel 6.1.0-39-amd64.

A crafted beacon broadcast over the air triggers __stack_chk_fail and a kernel panic:

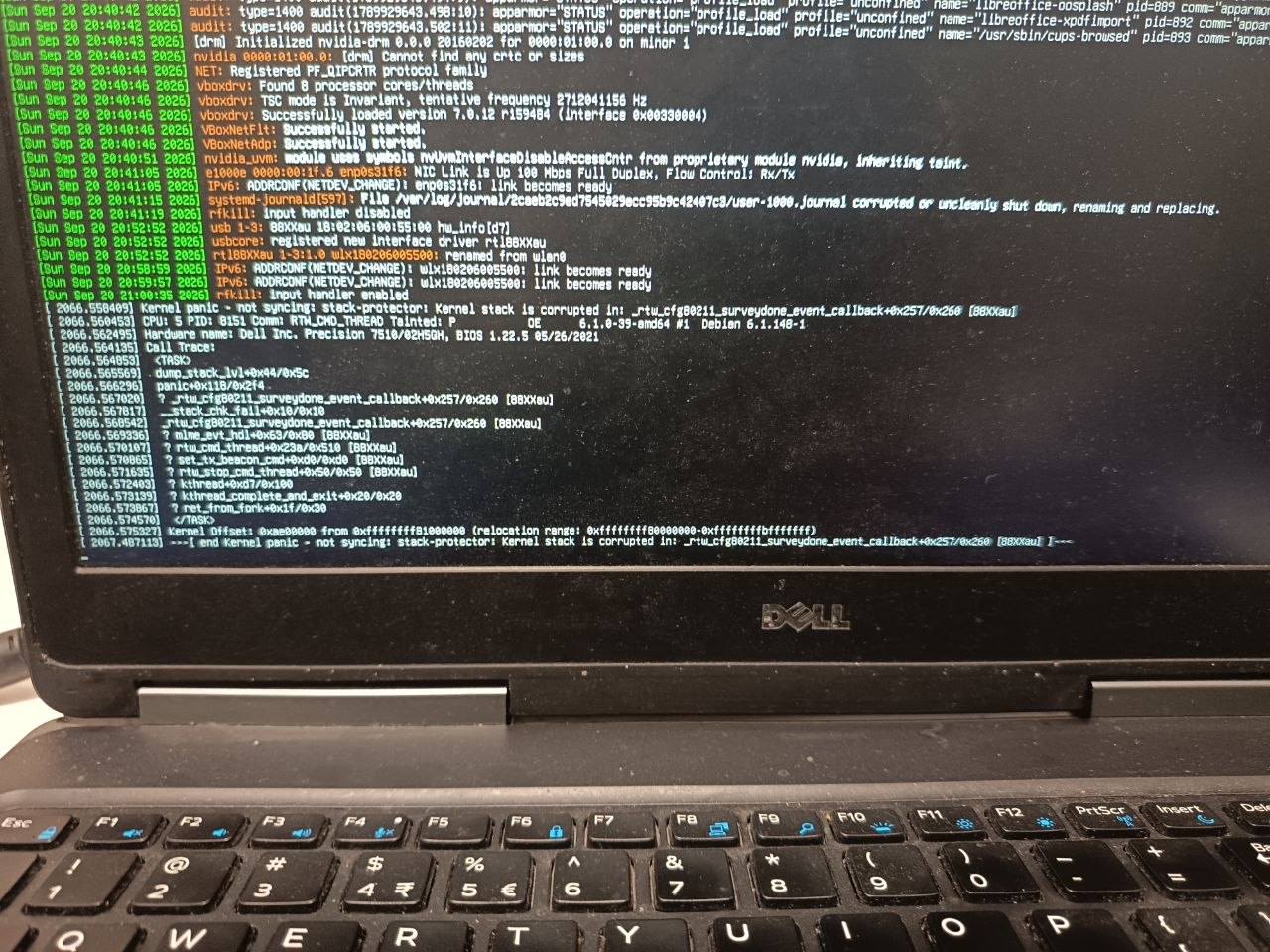

Kernel panic triggered by crafted WPS beacon — stack-protector: Kernel stack is corrupted in _rtw_cfg80211_surveydone_event_callback

[ 2066.558409] Kernel panic - not syncing: stack-protector: Kernel stack is corrupted in: _rtw_cfg80211_surveydone_event_callback+0x257/0x260 [88XXau]
[ 2066.560453] CPU: 5 PID: 8151 Comm: RTW_CMD_THREAD Tainted: P    OE    6.1.0-39-amd64 #1  Debian 6.1.148-1
[ 2066.562495] Hardware name: Dell Inc. Precision 7510/02H5GH, BIOS 1.22.5 05/26/2021
[ 2066.564135] Call Trace:
[ 2066.564853]  <TASK>
[ 2066.565569]  dump_stack_lvl+0x44/0x5c
[ 2066.566296]  panic+0x118/0x2f4
[ 2066.567020]  ? _rtw_cfg80211_surveydone_event_callback+0x257/0x260 [88XXau]
[ 2066.567817]  __stack_chk_fail+0x10/0x10
[ 2066.568542]  _rtw_cfg80211_surveydone_event_callback+0x257/0x260 [88XXau]
[ 2066.569336]  ? mlme_evt_hdl+0x63/0x80 [88XXau]
[ 2066.570107]  ? rtw_cmd_thread+0x23a/0x510 [88XXau]
[ 2066.570865]  ? set_tx_beacon_cmd+0xd0/0xd0 [88XXau]
[ 2066.571635]  ? rtw_stop_cmd_thread+0x50/0x50 [88XXau]
[ 2066.572403]  ? kthread+0xd7/0x100
[ 2066.573139]  ? kthread_complete_and_exit+0x20/0x20
[ 2066.573867]  ? ret_from_fork+0x1f/0x30
[ 2066.574570]  </TASK>
[ 2066.575327] Kernel Offset: 0xae00000 from 0xffffffff81000000 (relocation range: 0xffffffff80000000-0xffffffffbfffffff)
[ 2067.487113] ---[ end Kernel panic - not syncing: stack-protector: Kernel stack is corrupted in: _rtw_cfg80211_surveydone_event_callback+0x257/0x260 [88XXau] ]---

Note on trigger conditions

The in-tree rtl8723bs driver (staging, loads with TAINT_CRAP) calls rtw_get_wps_attr_content() unconditionally during scan result processing — any automatic Wi-Fi scan triggers the overflow, zero click. Per kernel policy, staging drivers are not treated as security issues; the fix is handled through the normal patch process.

The aircrack-ng rtl8812au driver has an additional gate (rtw_cfg80211_is_target_wps_scan) that requires the scan request to have exactly n_ssids=1, ssid_len>0, and n_channels=1. Standard tools like iw and NetworkManager do not generate these exact parameters in their periodic scans. The hardware test used a custom netlink scan trigger to satisfy this condition. wpa_supplicant may send matching parameters during WPS PBC (Push Button Connect) operations.

Found with mwemu (kernel-mode driver emulation) and source review. — Jesus Olmos (@sha0coder)
